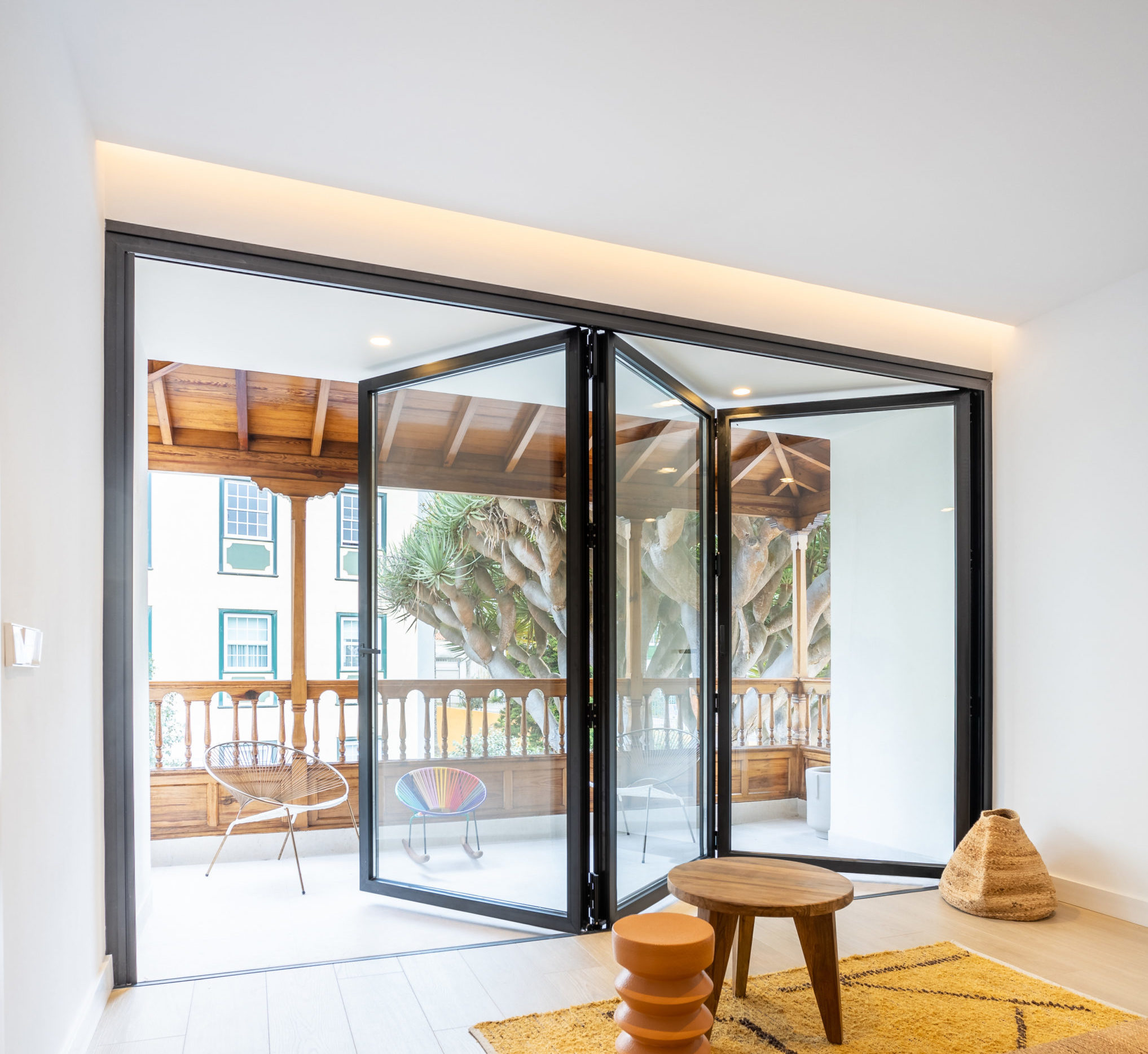

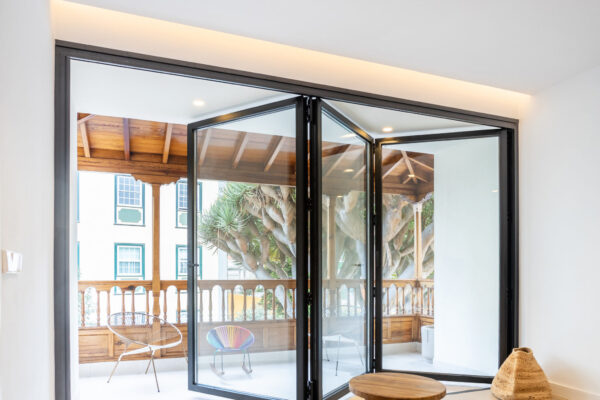

At Arkay Windows, we are excited to offer our UniFOLD HI bifold. With 110mm glass to glass sightlines, spread sunlight across your home with our latest bifold doors that will open up your space and create a brighter, more luminous space.

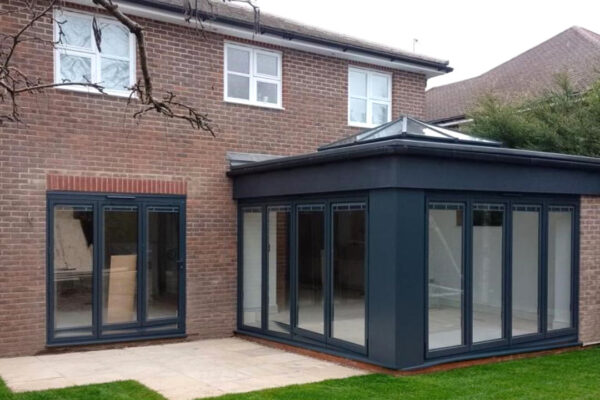

For a revolutionary design, which is incredibly easy to install due to our all new snap in pre gasketed glazing bead, choose our UniFOLD HI bifold doors.
Our UniFOLD HI bifold doors are designed to minimise time on site and maximise your profit.
UniFOLD HI is a high-performance aluminium bifold system designed for trade fabrication and installation. It features snap-in pre-gasketed glazing beads and smooth-running roller hardware for reliable, quiet operation and fast assembly.
The system is configurable to project requirements, with inward or outward opening options and multiple layout configurations. Slim aluminium profiles maximise glass area while maintaining structural integrity.
Thermally broken frames deliver strong thermal performance without compromising on sightlines, making UniFOLD HI suitable for residential and light commercial applications where performance and aesthetics are key.
UniFOLD HI offers full design flexibility with single or dual RAL powder-coated finishes and colour-matched hardware for a clean, consistent aesthetic. Durable powder coating ensures long-term colour stability and resistance to fading or cracking.
The system is engineered with multipoint locking for enhanced security and is compatible with double or triple glazing. Aluminium profiles provide high strength and durability for demanding site conditions.

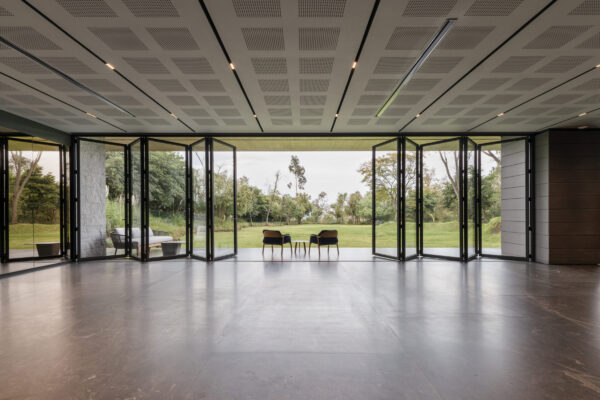

Thermal performance options include double glazing from 1.3 W/m²K (BFRC A) and triple glazing down to 0.8 W/m²K (BFRC A++), making UniFOLD HI suitable for high-spec residential and commercial projects.
| FRAME DEPTH | 80 mm |
| GLAZING | Double or Triple Glazing |
| GLAZING METHOD | Internally Beaded |
| MINIMUM SIGHTLINE | 110 mm |
| FINISHES | Single or Dual. All RAL Colours |
| MAXIMUM PANEL WIDTH | 1200 mm |
| MAXIMUM PANEL HEIGHT | 3000 mm |
| MAXIMUM PANEL WEIGHT | 120 kg |
| U-VALUE | 0.8 W/m²K |
| AIR PERMEABILITY | Class 4 |
| WATER TIGHTNESS | Class E750 |
| WIND RESISTANCE | Class C3 |
| PAS24 | Yes (Optional) |
| ENHANCED SECURITY | Multi-Point Locking |
| STANDARD | 46.5 mm |
| LOW | 28.5 mm |
UniFOLD HI supports 24–44 mm glazing, giving installers the flexibility to specify double or triple glazed units depending on thermal, acoustic or project performance requirements.
Yes — PAS 24:2016 is available on request. This makes UniFOLD HI suitable for new-build sites or residential projects where enhanced security compliance is required.
The system includes standard and low thresholds, allowing installers to achieve either accessibility-friendly entrances or seamless internal–external transitions.
UniFOLD HI supports panel widths up to 1200 mm, heights up to 3000 mm, and panel weights up to 120 kg, providing wide design flexibility for both small and large openings.
The system achieves Class 4 air permeability, Class 9A water tightness, and Class A3 wind resistance, ensuring reliable performance even in more exposed environments.
